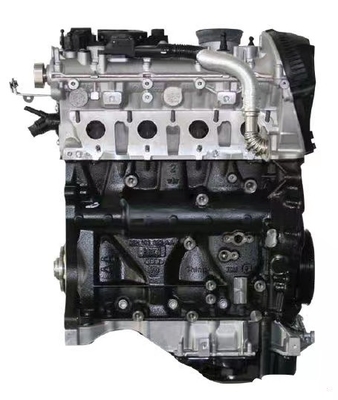

Product Details:
|
| Model: | A4 | Year: | 2003-2005, 2006-2006, 2000-2003, 2004-2008, 2004, 1995-1996 |
|---|---|---|---|
| Engine: | 1.8 T Quattro, 1.8 T, Quattro 1.8L 1781cc | OE NO.: | 06H100860SX |
| Car Fitment: | Audi | Type: | Gas / Petrol Engine |
| Power: | 118kW/4500-6200 Rpm | Displacement: | 1798 |
| Torque: | 250Nm/1500-4200rpm | Warranty: | 1 Years |
| Engine Code: | EA888 Second Generation | Car Model: | Audi |
| Condition: | New |
Basic Information:
| Small Short Hair Assembly Number: | 06H 100 860 SX |
| Type code: | CCU |
| Matching Models: | Audi A4 manual / stepless speed changing |
Engine Parameters :
| Engine type | EA888 Second Generation |
| Displacement (mL) | 1798 |
| Intake form | Turbo |
| Cylinder arrangement form | Inline four-cylinder |
| Number of cylinders (units) | 4 |
| Valves per cylinder (units) | 4 |
| compression ratio | 9.6 |
| Valve train | Overhead double camshaft |
| Cylinder diameter (mm) | 82.5 |
| Stroke (mm) | 84.1 |
| Maximum torque | 250Nm/1500-4200rpm |
| Maximum power | 118kW/4500-6200 rpm |
| Cylinder head material | aluminum alloy |
| Cylinder block material | cast iron |
| Fuel supply mode | Gasoline direct injection |
1pc/box neutral packaging Export carton/wooden packaging or customized. | Quantity(pieces) | 1 - 10 | 11 - 50 | >50 |
| Lead time (days) | 10 | 15 | To be negotiated |
At present, Our company has five production lines including cylinder block, cylinder head, crankshaft, connecting rod and balance shaft, and assembly lines including cylinder head sub-assembly line, short hair assembly line and long hair assembly line. In addition, the production process also includes perfect cold test, hot test, power measurement and measurement system.
